Scene Selector
An option panel to constitute in combination expanding the function of Light Scene Controller.

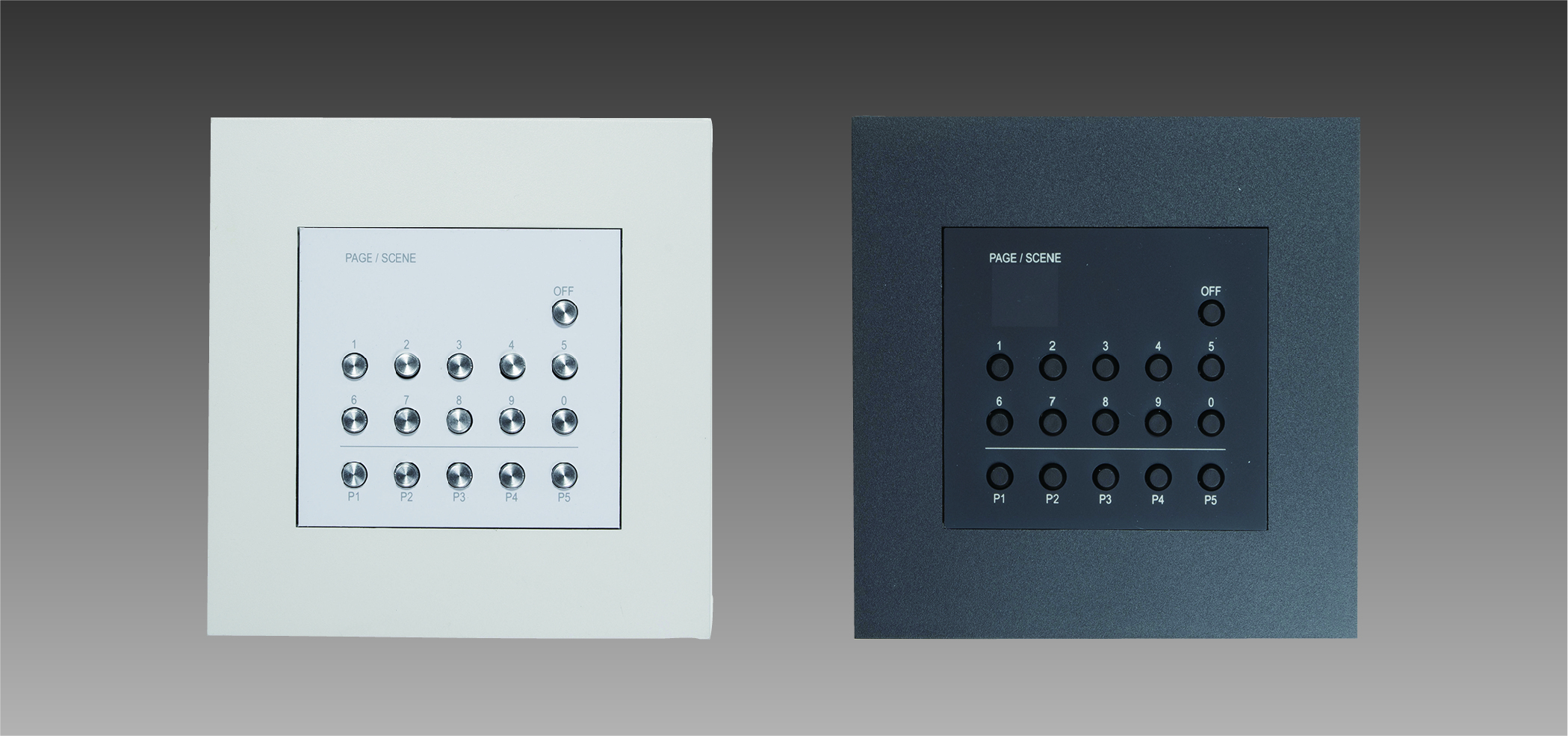

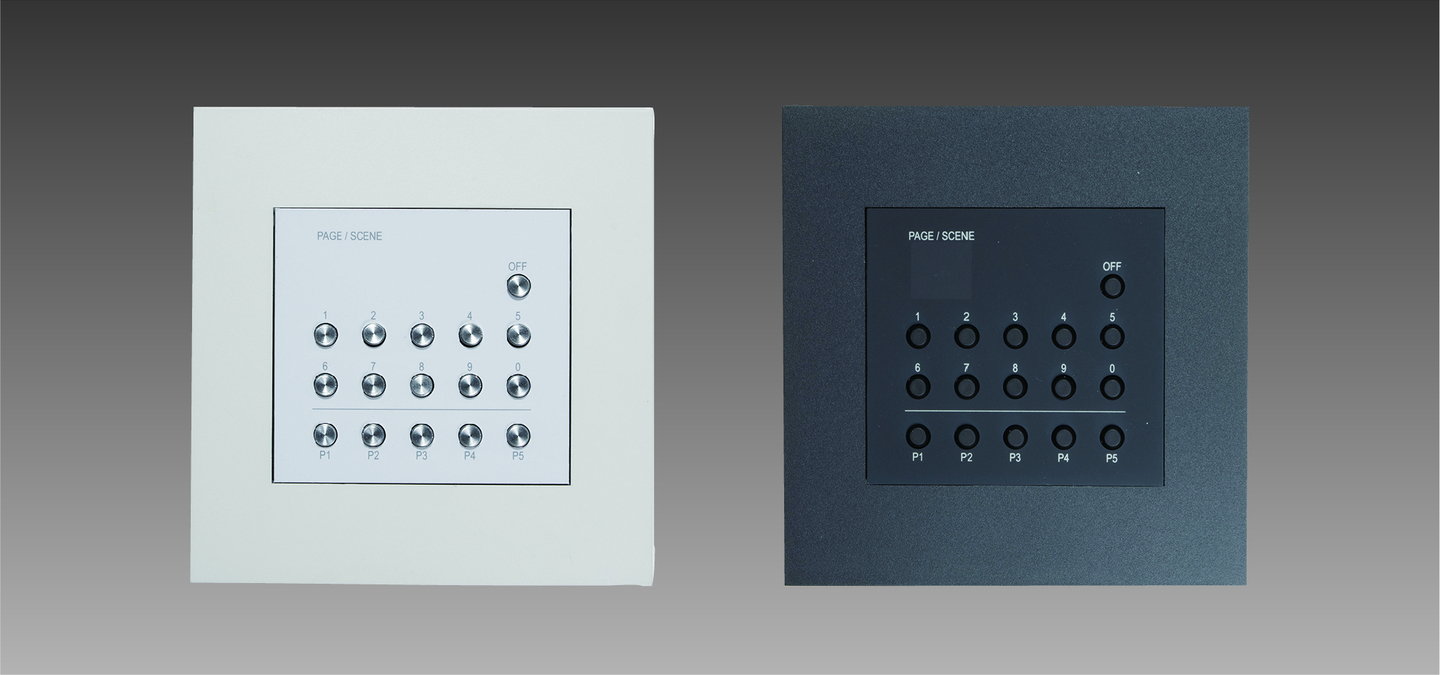

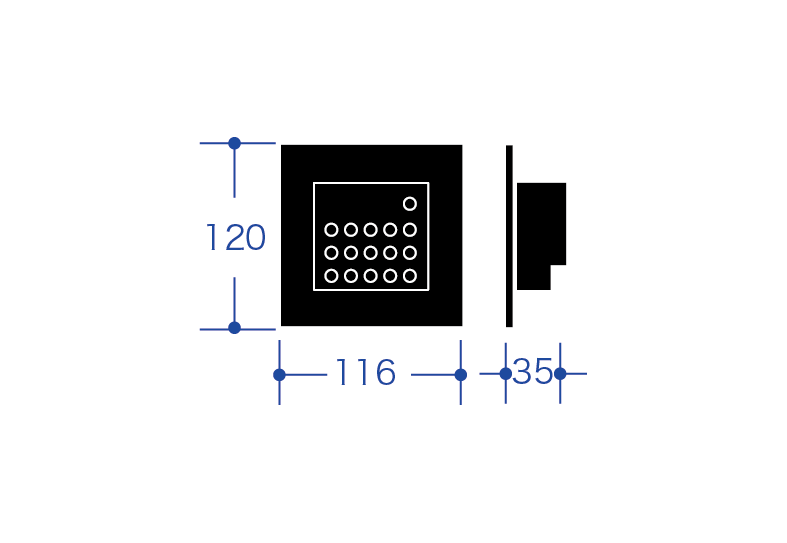

10 Scene x 5 Page Scene Selector

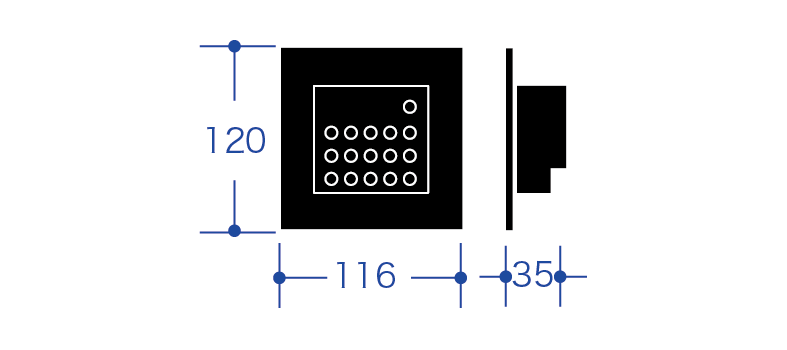

Size cm
SpecificationÈ
| MODEL | 10 Scene ×5 Page Scene Selector | |
| CODE No. | SC2014 | |
| Input Voltage | DC12V | |
| Output Signal | DMX512 RJ45［LAN］ | |
| Scene Switch | 10 Scene x 5 Page | |
| OFF Switch | turn off the light | |
| Controllr | Connect to 99ch or 40ch | |
| Addition Connector | For Scene Selector | |
| Max Addition | Max 2 Scene Selector | |
| Installation | Wall fitting for switch box ( 2 switches ) | |
| Ambient Temperature | 5°C〜35°C | |
| Ambient Humidity | 45%〜85% No condensation | |
| Power Supply | From Controller | |
| Color | Panel : Plastic white and Plastic black Plate : White and Plastic black |
|
| mass | Approx. 0.7kg | |
| Specification | DXF / PDF | |

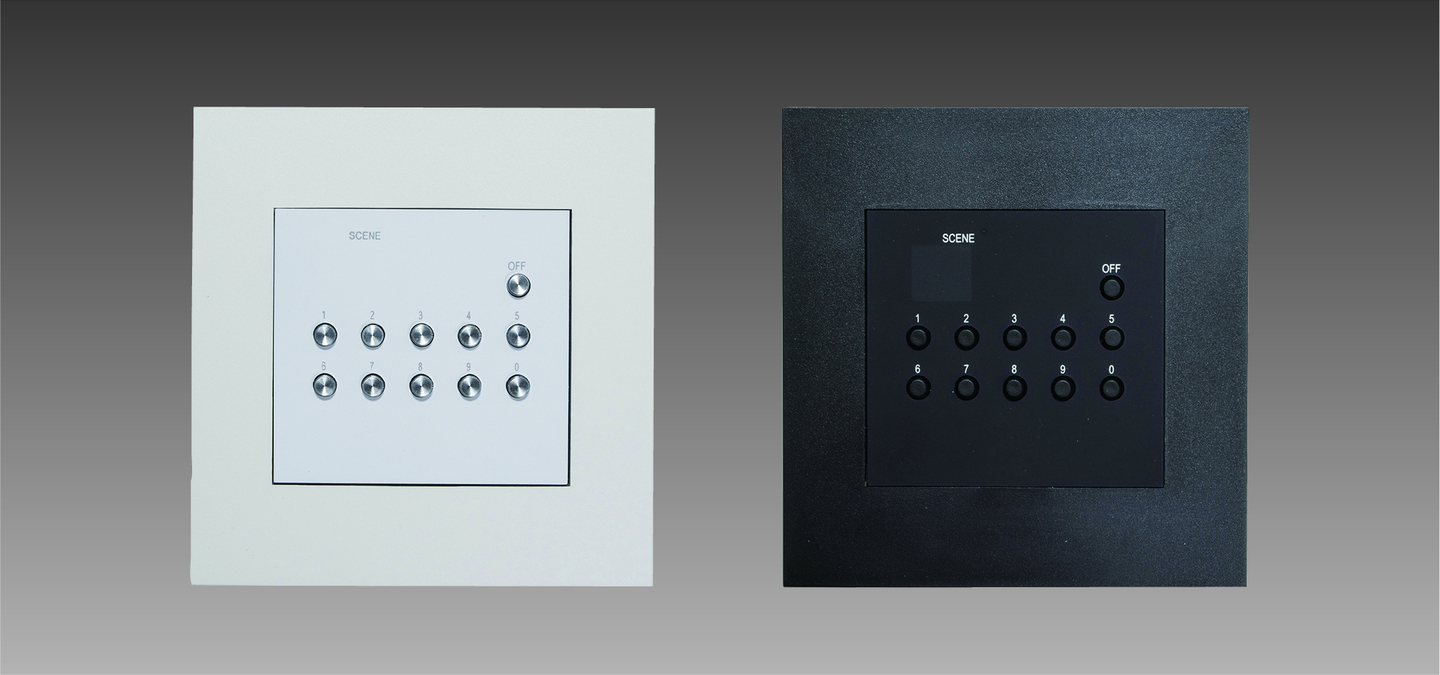

10 Scene Selector

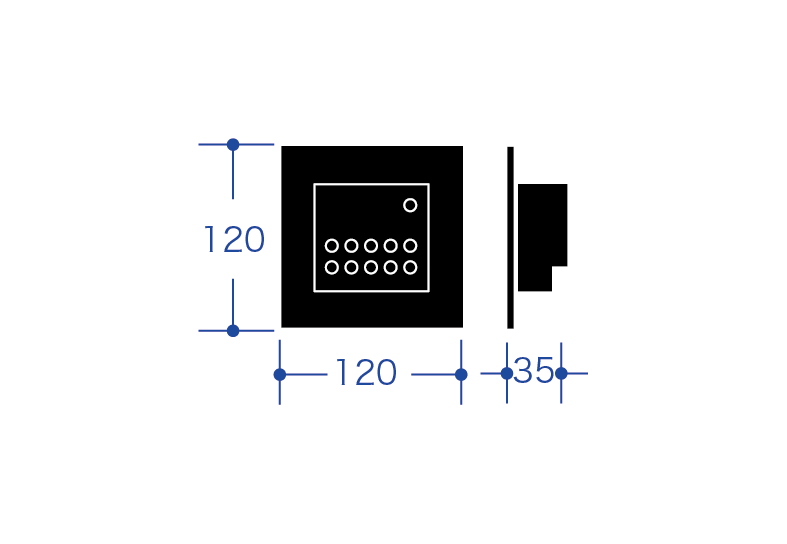

Size cm
| MODEL | 10 scene selector | |
| CODE No. | SC2013 | |
| Input Voltage | DC12V | |
| Output Signal | DMX512 RJ45 connector［LAN］ | |
| Scene Switch | 10 scenes | |
| OFF Switch | turn off the light | |
| Controller | Connect to 99ch or 40ch | |
| Addition Connector | For Scene Selector | |
| Max Addition | up to 2 Scene Selector | |
| Installation | Wall fitting for switch box ( 2 switches ) | |
| Ambient Temperature | 5°C〜35°C | |
| Ambient Humidity | 45%〜85% No condensation | |
| Power Supply | From Controller | |
| Color | Panel : Plastic white and Plastic black Plate : White and Plastic black |
|
| mass | Approx. 0.7kg | |
| Specification | DXF / PDF | |

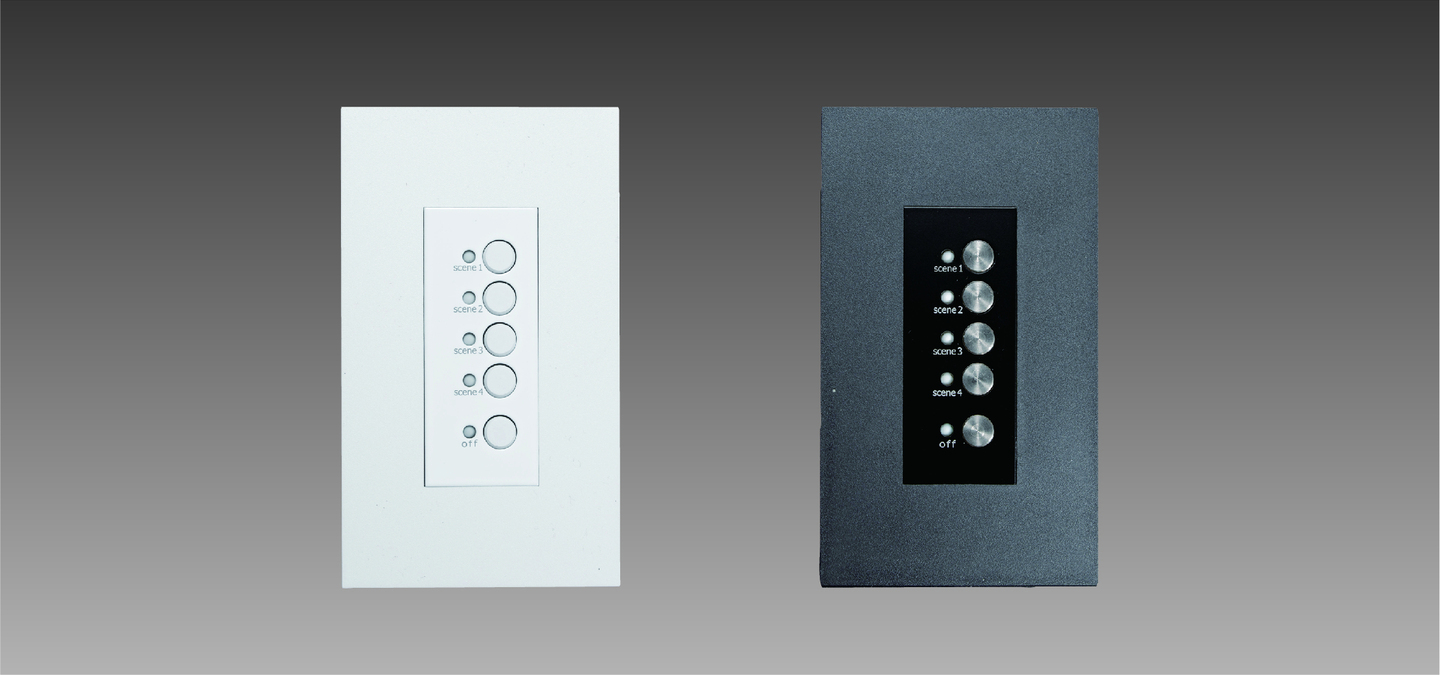

4 Scene Selector

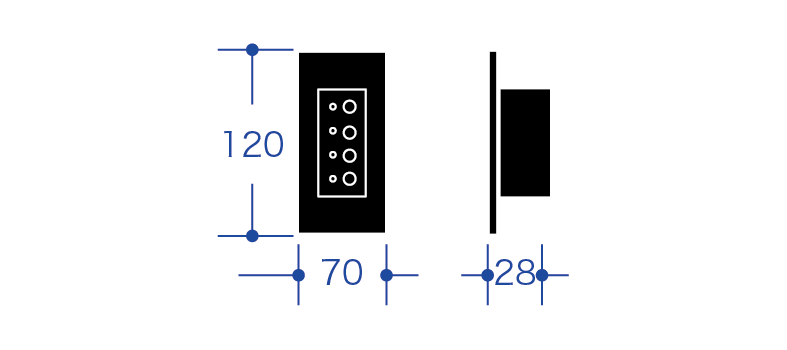

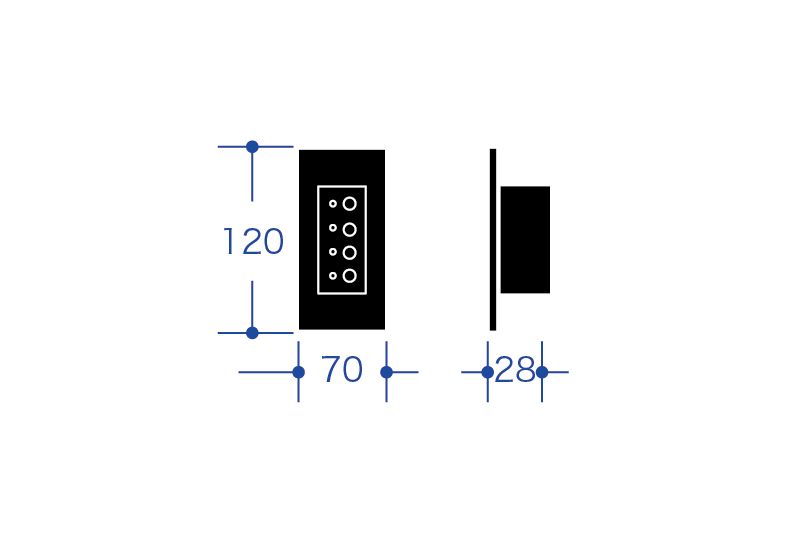

Size cm
| MODEL | 4 Scene Selector | |
| CODE No. | SC2015 | |
| Input Voltage | DC12V from Controller | |
| Output Signal | DMX512 RJ45 connector［LAN］ | |
| Scene Switch | 4 with LED indicator | |
| OFF Switch | 1 | |
| Scene number | SCENE 1〜4 | |
| Controller | Connect to 99ch or 40ch | |
| Installation | Wall fitting for switch box (1 switch ) | |
| Ambient Temperature | 5°C〜35°C | |
| Ambient Humidity | 45%〜85% No condensation | |
| Power Supply | From Controller | |
| Color | Panel : Plastic white and Plastic black Plate : White and Plastic black |
|
| mass | Approx. 0.2kg | |
| Specification | DXF /PDF | |
