Light Scene Controller
Incorporates memory function and controls a various Liting Scene.

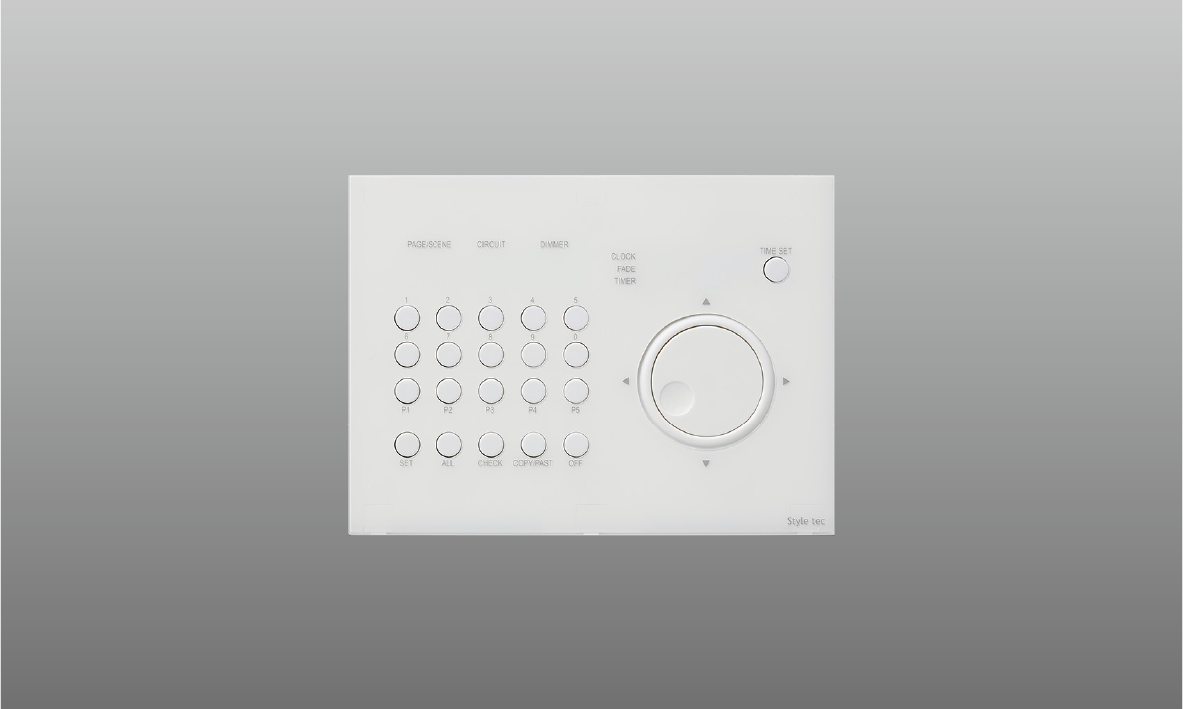

99ch Scene Controller
Compact scene controller, 50 memory scene which incorporated a timer.

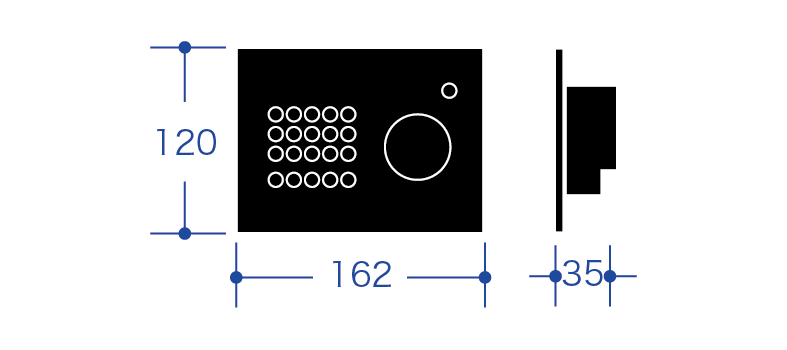

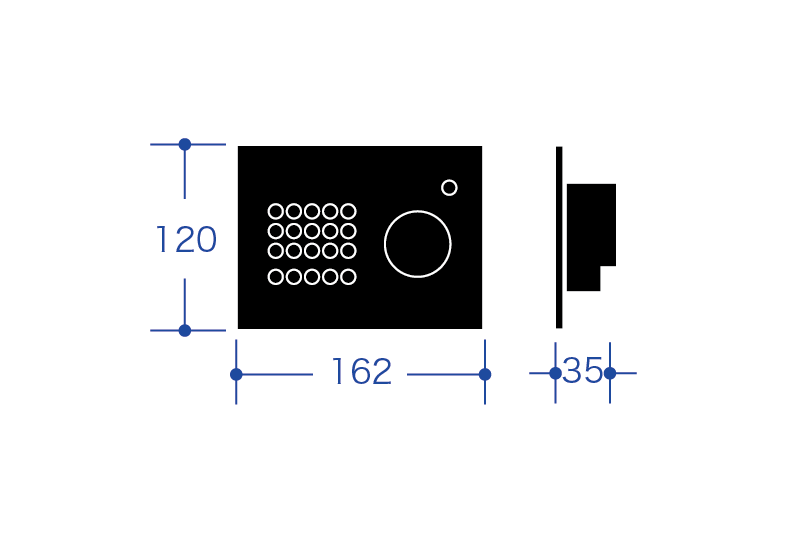

Size cm
| MODEL | 99ch Scene Controller |
| CODE No. | SC2002 |
| Input Voltage | DC12V |
| Wattage | 3W |
| Output Signal | DMX512 RJ45 connector [LAN] with feel mode |
| Addition Connector | Scene Selector or the other devices |
| Channel | 99 ch |
| Dimming Range | 0-100 |
| Scene memory | 10 scene x 5 page 50 scene 50 scenes ( Nonvolatile for 10 years ) |
| Timer | 24 hour timer for every scene Accuracy ±30 seconds per month |
| Fade time | 0-99 seconds ( set in seconds for every scene ) |
| Function for scene memories |
Scene memories circuit check Scene setting at the back of the other scene play Master for all channels |
| Lock function | Lock the keys except for Scene, Page, and OFF |
| Installation | Wall fitting for switch box (3 switches ) |
| Nonvolatiles for power failure |
Timer : 2weeks Scene memory : 10 years |
| Ambient Temperature | 5°C〜35°C |
| Ambient Humidity | 45%〜85% No condensation |
| Color | Front panel : White plastic ( gloss ) Back box : SPC |
| Power Supply | 12V2W ( general-purpose product ) |
| Mass | 約0.7kg |
| Specification | DXF / PDF |

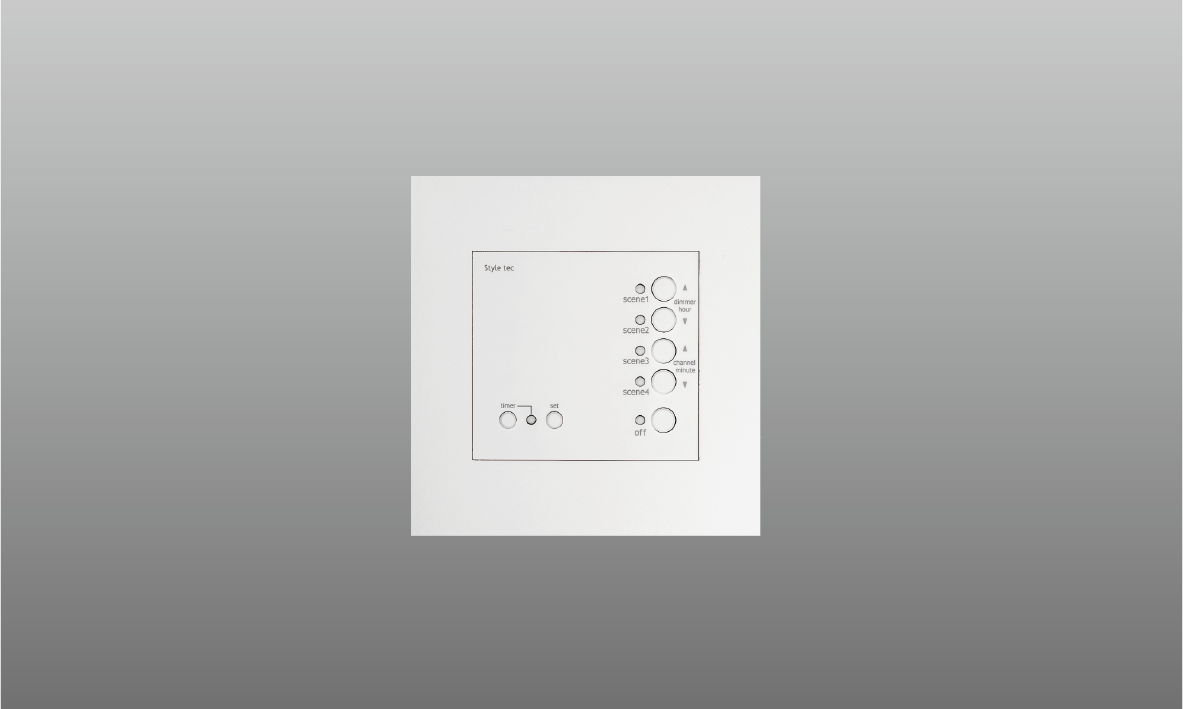

40ch Scene Ver.5 with Timer [ 4 Scene ]
Compact scene controller, 4 memory scene which incorporated a timer.

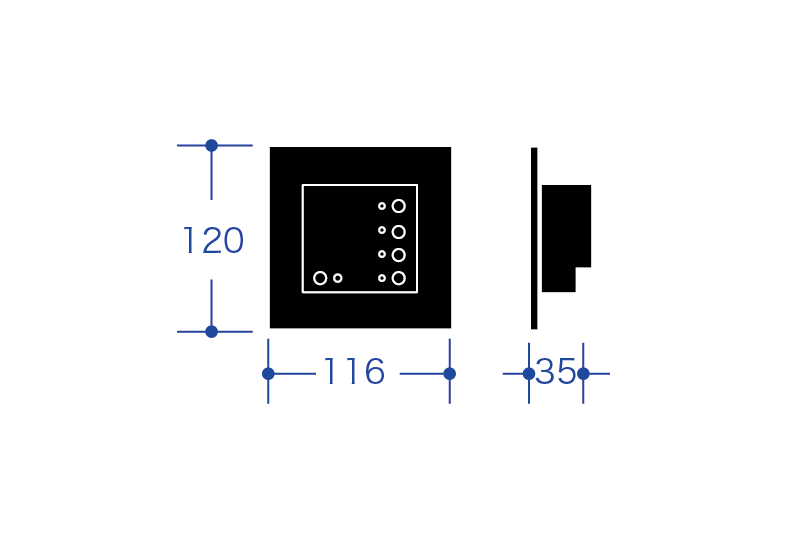

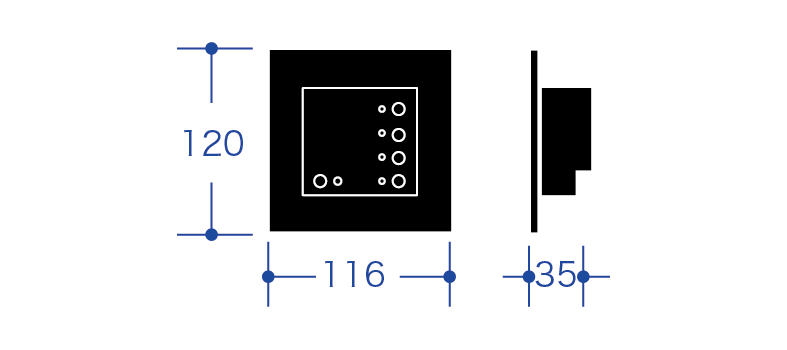

Size cm
| MODEL | 40ch Scene [ 4 memory ] Ver.5 with Timer |
| CODE No. | SC2050 |
| Input Voltage | DC12V |
| Wattage | 1W |
| Output Signal | DMX512 RJ45 connector［LAN］ |
| Addition Connector | up to 3 Scene Selector or the other devices |
| Channel | 40 ch |
| Dimming Range | 0-100 |
| Scene memory | 4 scenes + OFF |
| Fade time | 0-99 min. 59 sec. in seconds |
| Timer | every 4 scene and OFF Accuracy: ±15 seconds per month Sunrise/Sunset timer ( before or after 3 hour s) Weekly timer |
| Installation | Wall fitting for switch box (2 switches ) |
| Nonvolatiles for power failure |
Clock setting : Approx. 1 month Scene memory ( time, sunrise and sunset ) : 10 years |
| Ambient Temperature | 5°C〜35°C |
| Ambient Humidity | 45%〜85% No condensation |
| Color | Panel: Plastic white Plate: White |
| Power Supply | 12V2W ( general-purpose product ) |
| Mass | Approx. 0.3kg |
| Specification | DXF / PDF |

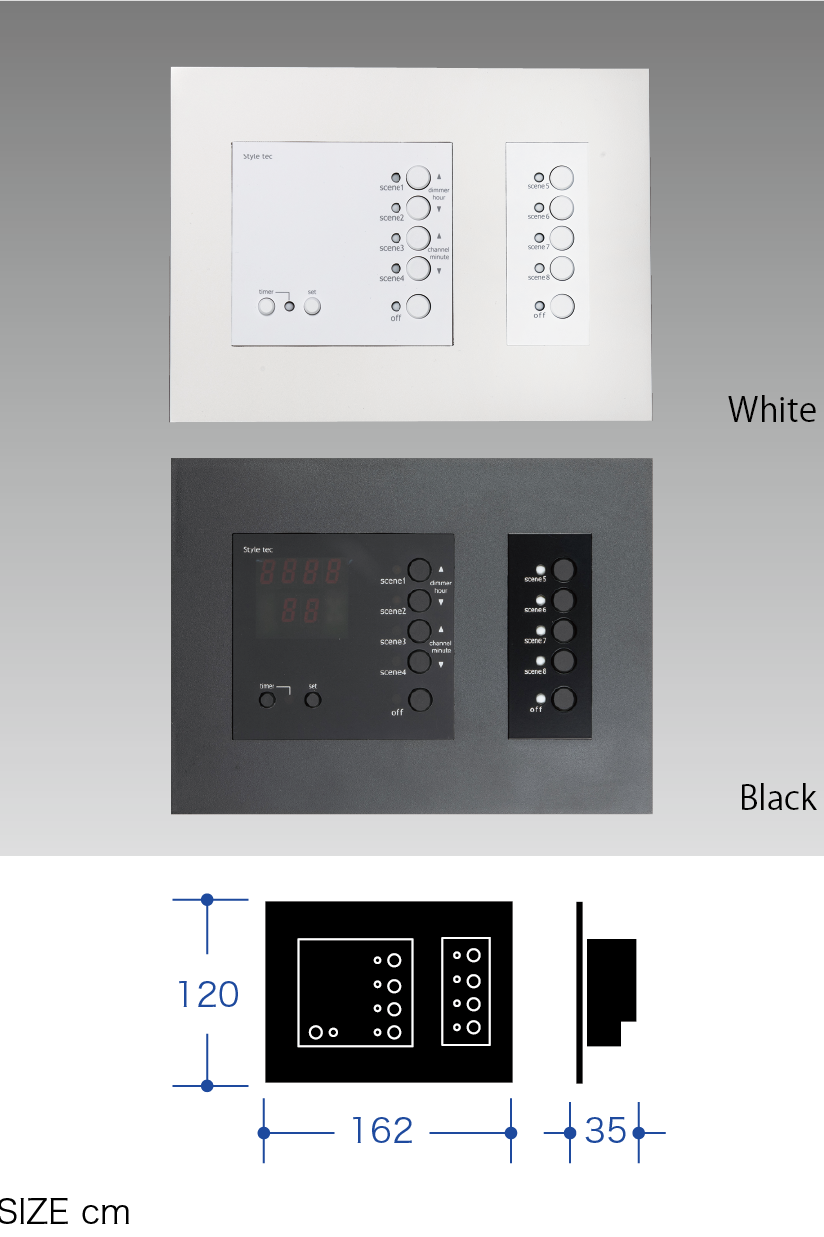

40ch Scene Ver.5 with Timer Additional Scene Model [ 8 scene ]
Compact scene controller, 8 [ 4 main + 4 additional ] memory scene which incorporated a timer.
| MODEL | 40ch Scene [ 8 memory ] Ver.5 with Timer |
| CODE No. | SC2051 |
| Input Voltage | DC12V |
| Wattage | 1W |
| Output Signal | DMX512 RJ45 connector［LAN］ |
| Addition Connector | up to 3 Scene Selector or the other devices |
| Channel | 40 ch |
| Dimming Range | 0-100 |
| Scene memory | 8 scenes + OFF |
| Fade time | 0-99 min. 59 sec. in seconds |
| Timer | every 8 scene and OFF Accuracy: ±15 seconds per month Sunrise/Sunset timer ( before or after 3 hour s) Weekly timer |
| Installation | Wall fitting for switch box (2 switches ) |
| Nonvolatiles for power failure |
Clock setting : Approx. 1 month Scene memory ( time, sunrise and sunset ) : 10 years |
| Ambient Temperature | 5°C〜35°C |
| Ambient Humidity | 45%〜85% No condensation |
| Color | Panel : Plastic white and Plastic black Plate : White and Plastic black |
| Power Supply | 12V2W ( general-purpose product ) |
| Mass | Approx. 0.3kg |
| Specification | DXF / PDF |
